Commercial AV Case Study
Training Room & Videoconferencing System Integration
Xtend Technologies was selected to design and install a high-performance AV system for a large training and meeting room designed to support corporate training sessions, presentations, and hybrid videoconferencing.
The space required a solution that could deliver clear visibility, professional audio, and seamless collaboration while remaining simple enough for any user to operate.
The final system combines high-performance projection, wireless presentation, professional conferencing technology, and intuitive control into a cohesive, easy-to-use environment.
The Client Challenge
The client needed a flexible meeting space capable of supporting:
- Large group training sessions
- Internal meetings and presentations
- Hybrid videoconferencing with remote participants
- Wireless content sharing from multiple users
- Clear audio for both in-room and remote attendees
In addition, the system needed to eliminate complexity—allowing users to walk into the room and start a meeting without technical assistance.
System Design Strategy
Xtend Technologies engineered a solution focused on simplicity, performance, and reliability.
Key design priorities included:
• Large-scale, high-impact visual presentation
• Clear and intelligible audio throughout the room
• Professional-grade videoconferencing capabilities
• Wireless collaboration for multiple users
• One-touch control for ease of use
• Clean installation with centralized equipment
The result is a system that performs consistently across all use cases—from training sessions to remote collaboration.

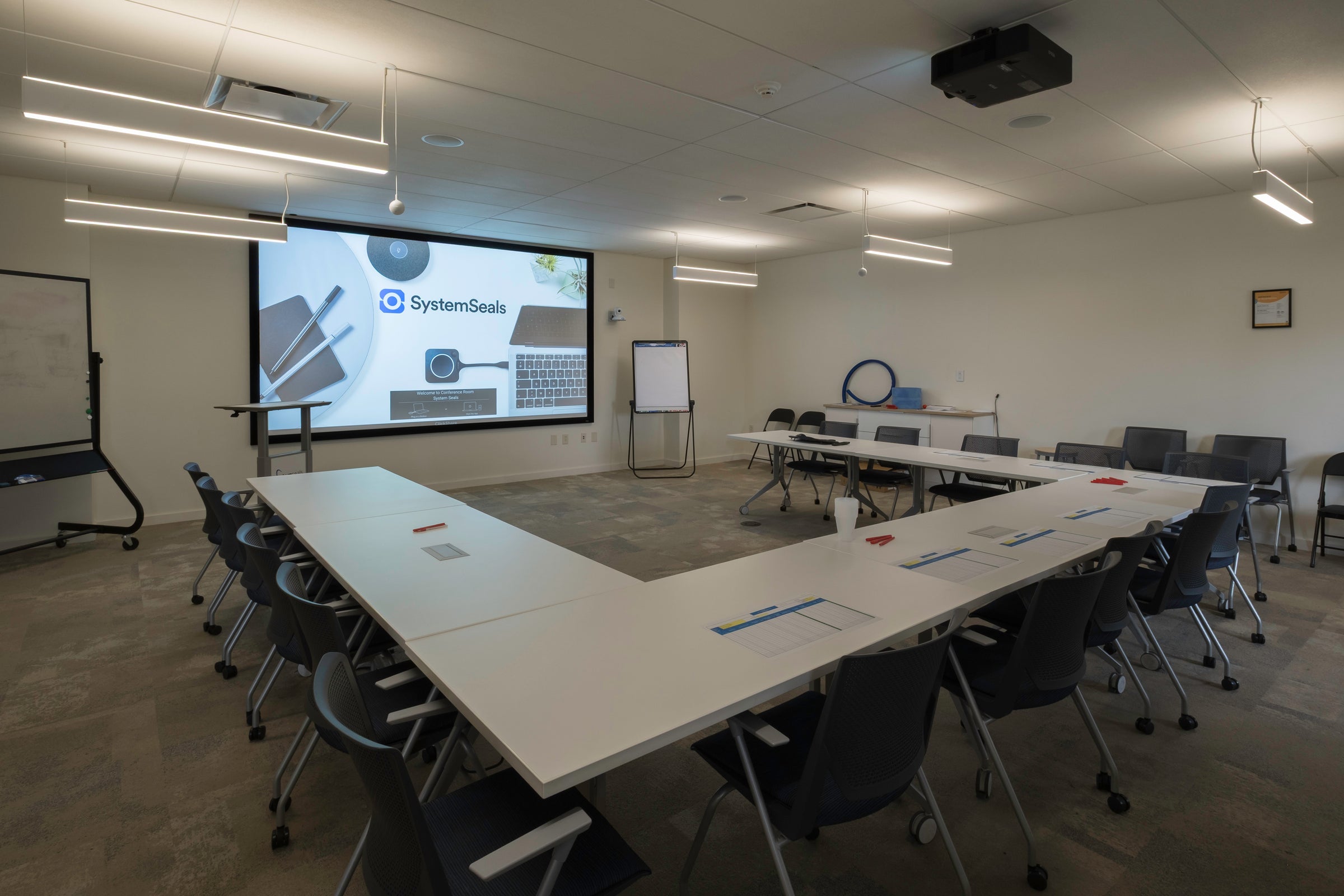

Large-Scale Projection & Visual Performance
To ensure clear visibility for all participants, Xtend installed a high-performance projection system featuring:

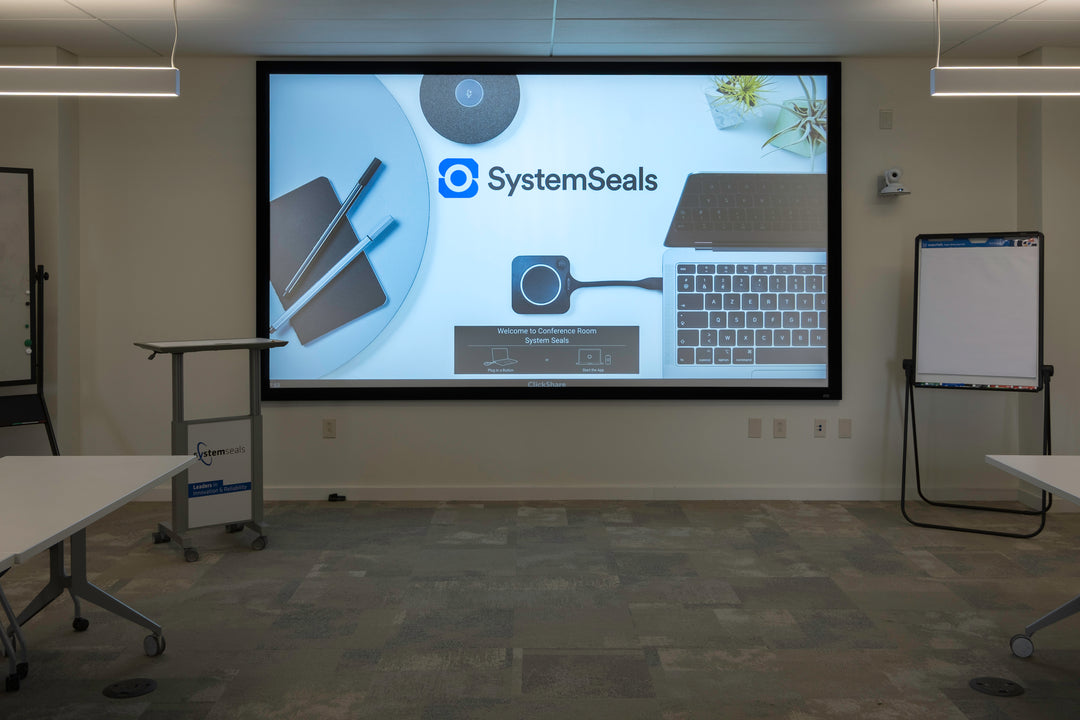

- 159” Da-Lite fixed-frame projection screen

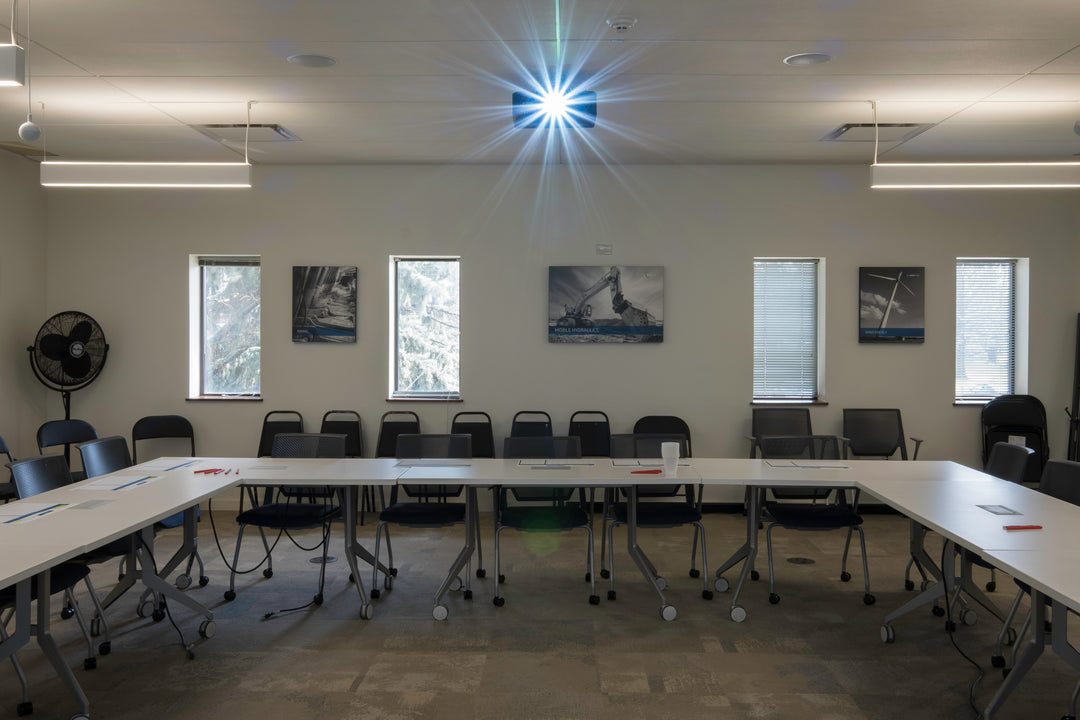

- Epson 8,000-lumen laser projector with 4K enhancement
This combination delivers:
✔ Bright, high-contrast visuals even in larger rooms
✔ Crisp detail for presentations and video content
✔ A professional viewing experience for training sessions
The large-format display ensures that all attendees—regardless of seating position—have a clear view of presented content.
Professional Videoconferencing System

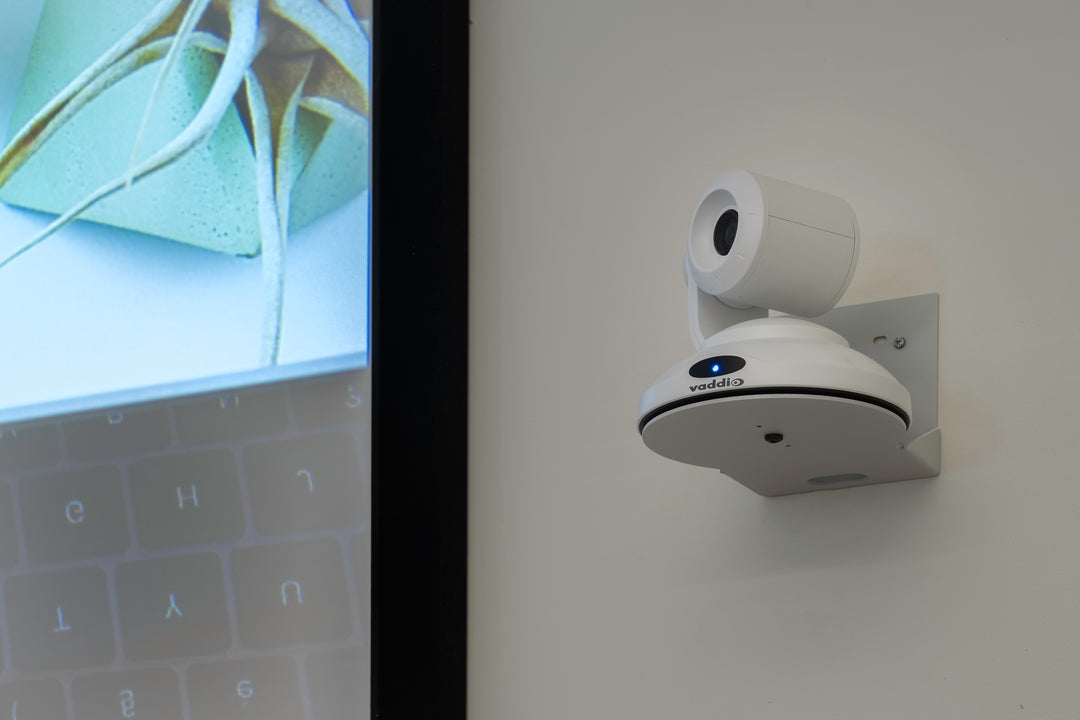

To support hybrid meetings, the room was equipped with a Vaddio ConferenceSHOT AV system, integrating both camera and audio processing into a single platform.
Key capabilities include:
• 10x optical zoom PTZ camera for full room coverage
• Wide-angle viewing to capture all participants
• Ceiling-mounted microphones with 360° pickup
• Built-in echo cancellation and DSP processing
• Compatibility with Zoom, Teams, Webex, and other platforms
Camera presets were programmed for:
- Full-room wide view
- Focused view on primary seating positions
This ensures a professional and engaging experience for remote participants.
Wireless Presentation & Collaboration
The system includes a Barco ClickShare CX-20 wireless conferencing solution, allowing users to present instantly from their devices.
This enables:
✔ One-click wireless presentation from laptops
✔ Seamless switching between presenters
✔ Guest-friendly access without complicated setup
✔ Integration with conferencing platforms
Users can walk into the room, connect, and begin presenting within seconds.
Audio System Design
Clear, intelligible audio was critical for both in-room communication and remote conferencing.
Xtend implemented a system featuring:

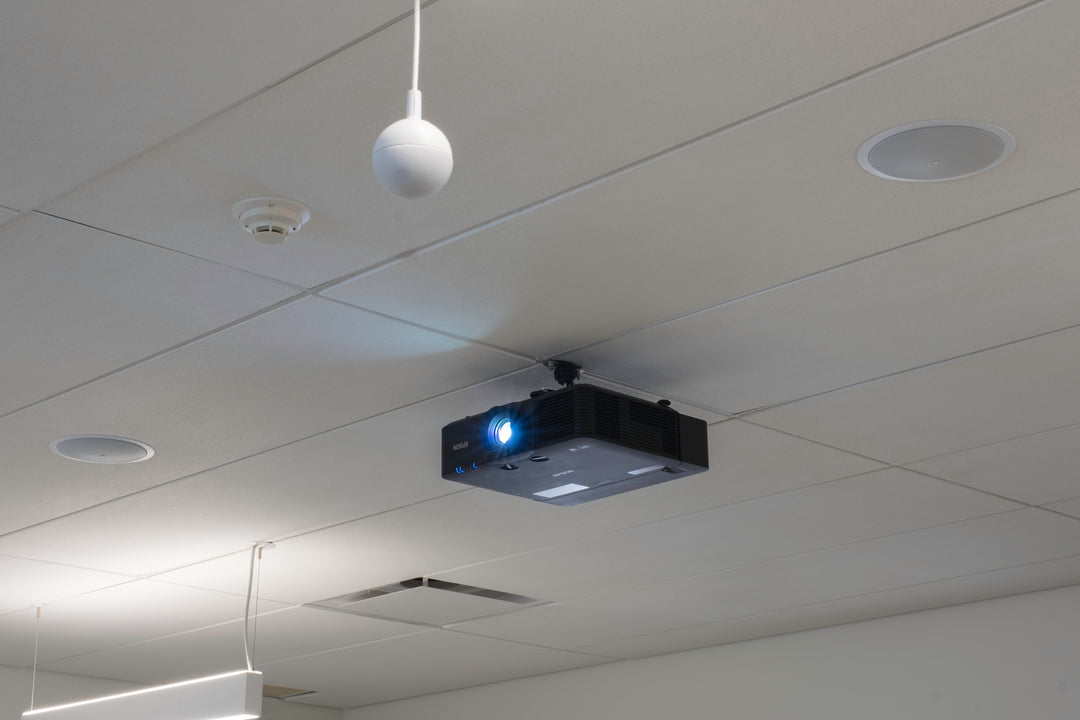

- JBL professional in-ceiling speakers for even room coverage
- AudioControl integrated amplifier for high-fidelity performance
- Ceiling-mounted microphones with advanced DSP processing
The result:
✔ Balanced sound throughout the room
✔ Clear speech intelligibility
✔ Enhanced experience for both local and remote participants
Simple & Intuitive Control
Ease of use was a top priority.
The system includes an ELAN control system with a wall-mounted keypad, programmed with custom-labeled buttons for common actions.
One-touch controls include:
- Video Conference
- Laptop Presentation
- Camera Wide / Camera Zoom
- Volume control
- System Off
This allows any user to operate the system without training—ensuring consistent usage and minimizing frustration.
Infrastructure & System Reliability
Behind the scenes, the system is supported by professional-grade infrastructure, including:
- Ubiquiti managed PoE network switch
- WattBox IP-controlled power management with surge protection
- Structured cabling
These components provide:
✔ Reliable system performance
✔ Remote monitoring and reboot capabilities
✔ Protection for critical equipment
✔ Simplified long-term maintenance
The Final Result
The completed training room delivers a flexible, high-performance environment that supports:
- Large group training sessions
- Corporate presentations
- Hybrid videoconferencing
- Wireless collaboration
- Clear, professional audio and video
The system is intuitive, reliable, and scalable—allowing the organization to host meetings and training sessions with confidence.
