Residential Case Study
Luxury Clubhouse Entertainment & Home Theater System – Gates Mills, Ohio
Xtend Technologies was selected to design and install a fully integrated audio, video, and automation system for a private residential clubhouse located in Gates Mills, Ohio.
Project Overview
The goal of the project was to create a high-performance, multi-purpose entertainment space capable of supporting:
- Cinematic home theater experiences
- Large-scale gatherings and events
- Distributed music and video throughout the space
- Flexible control for both everyday use and entertaining
The final result is a completely integrated environment where theater, audio, video distribution, and automation work seamlessly together to deliver a world-class experience.
The Client Vision
The homeowner envisioned a space that could function as both:
- A reference-quality private theater
- A social and entertainment hub for hosting guests
Key priorities included:
✔ A hidden, high-performance theater system
✔ Powerful, evenly distributed audio throughout the clubhouse
✔ The ability to watch any content on any display
✔ Simple, intuitive control for all users
✔ A clean, organized installation with centralized equipment
The system needed to deliver exceptional performance without complexity.

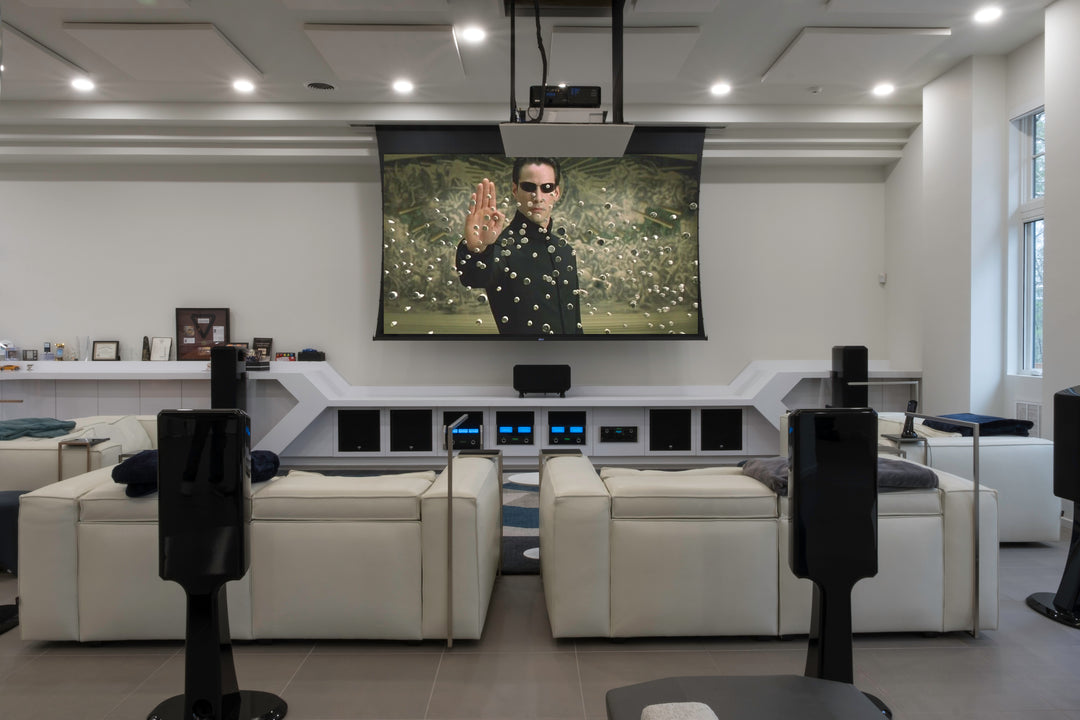

Reference-Quality Home Theater Experience
At the heart of the space is a fully immersive, high-performance theater system designed to rival commercial cinema environments.
Key features include:

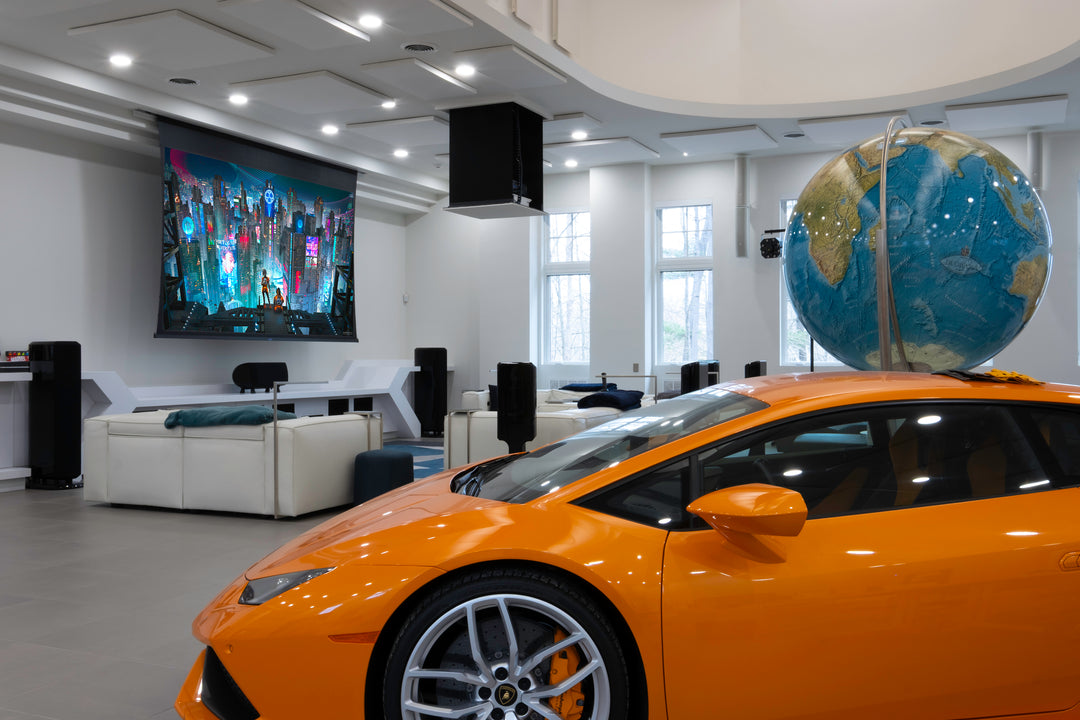

- 159” motorized projection screen that disappears when not in use
- 4K laser projector with high-brightness output

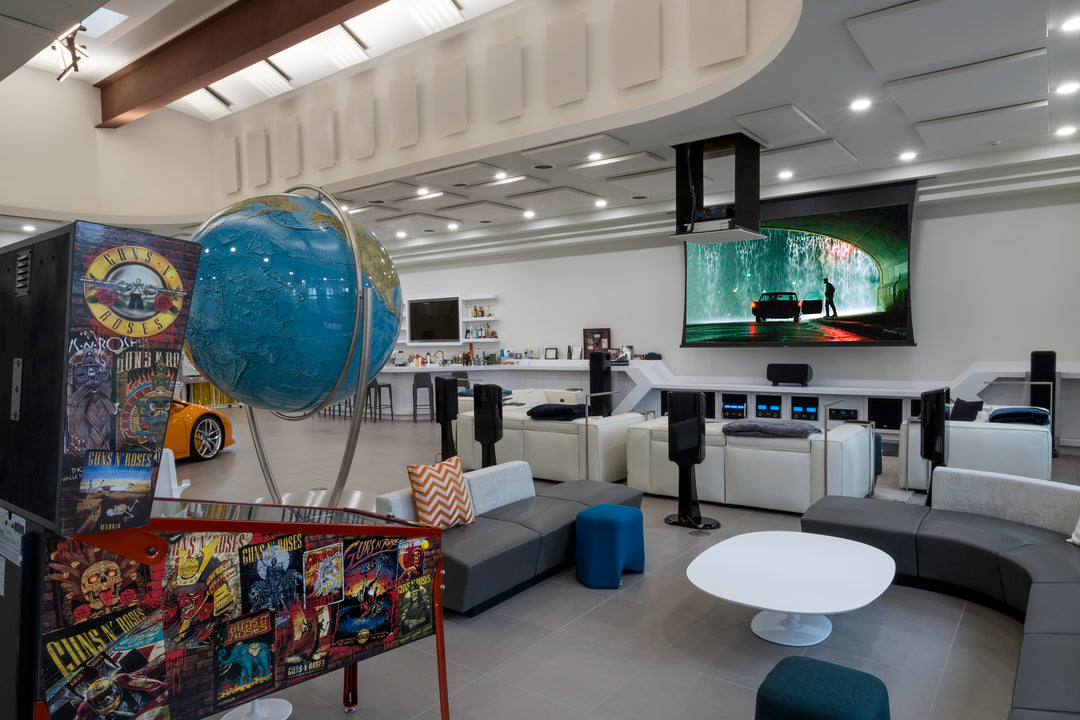

- Custom motorized ceiling projector lift for a clean, hidden installation
- McIntosh theater processor and amplification for audiophile performance
- Revel Ultima2 speaker system in a 7-channel surround configuration
- Four THX Ultra2-rated subwoofers for powerful, dynamic bass
This combination delivers:
✔ True cinematic visuals
✔ Exceptional clarity and detail
✔ Deep, immersive surround sound
When not in use, both the projector and screen retract—preserving the clean aesthetic of the space.
High-Performance Clubhouse Audio System
Beyond the theater, Xtend designed a professional-grade audio system to provide consistent, high-output sound throughout the entire clubhouse.
System highlights:

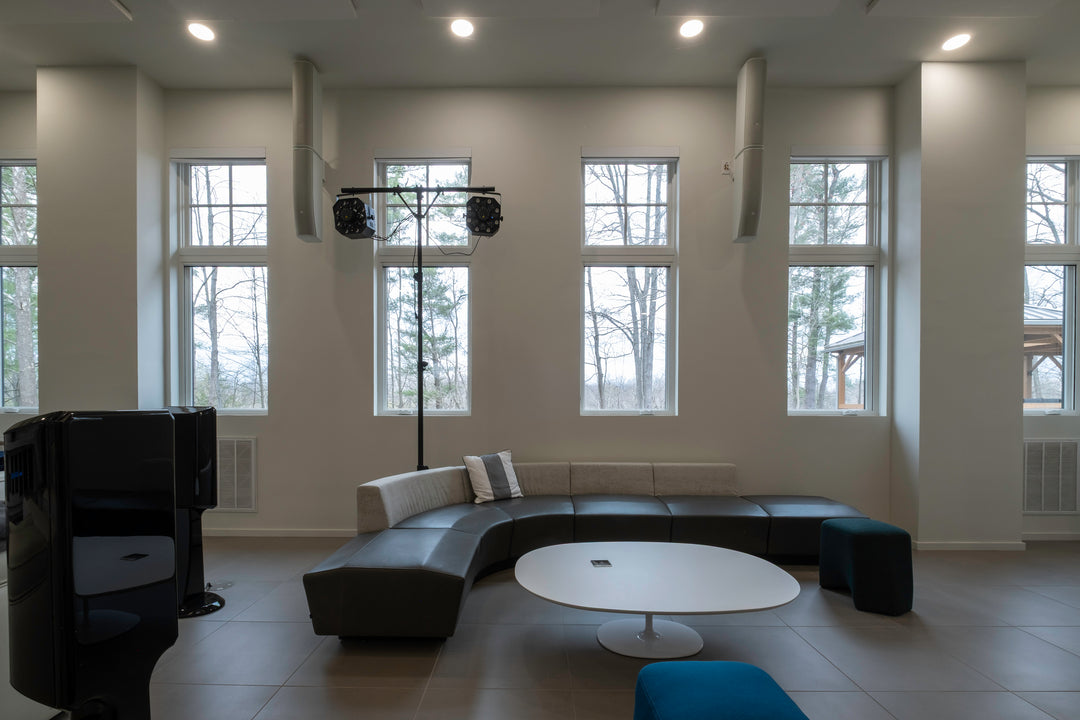

- JBL line array speaker system custom engineered for the space
- Four line array speakers and four high-power subwoofers
- Crown professional amplification
- On-site calibration by a JBL sound engineer
This system provides:
✔ Even sound coverage across the entire space
✔ High output levels for events and gatherings
✔ Clear, intelligible audio at any volume
Whether hosting a party or enjoying background music, the system delivers concert-level performance with precision control.
Distributed Video System
The clubhouse was designed with a fully flexible 4K video distribution system.
Capabilities include:
- Watch any source on any display throughout the space
- Seamless switching between sources
- Expandable architecture for future growth
Available sources include:
• Cable box
• Apple TV
• Roku
• Office HDMI input
This allows the homeowner and guests to:
✔ Watch different content in different areas
✔ Mirror content across multiple displays
✔ Easily switch between sources
The system is designed for both everyday use and large gatherings.
Bar, Lounge & Multi-Zone Entertainment Areas
Additional areas throughout the clubhouse were designed to extend the entertainment experience.
Bar Area:
- 75” Sony 4K display
- In-ceiling speakers for localized audio
- Infrastructure to support up to 9 displays for future expansion
Office Area:
- 75” Sony 4K display for content viewing and control
Restrooms & Auxiliary Spaces:
- Distributed in-ceiling audio for a consistent experience throughout
These zones ensure the entire space feels connected—whether hosting a large event or enjoying a more private setting.
Integrated Microphone & Event Capabilities
To support events, announcements, and live audio, the system includes:
- Audio-Technica digital wireless microphone system
- Dual handheld microphones with extended coverage
- Digital mixer integrated into the control system
Additionally, multiple audio input wall plates were installed throughout the space for:
- DJs
- Live music
- External audio sources
This allows the space to function as a true multi-purpose entertainment venue.
Smart Automation & Control
The entire system is unified through a custom-programmed ELAN automation platform.
Control options include:
- Mobile app on phones and tablets

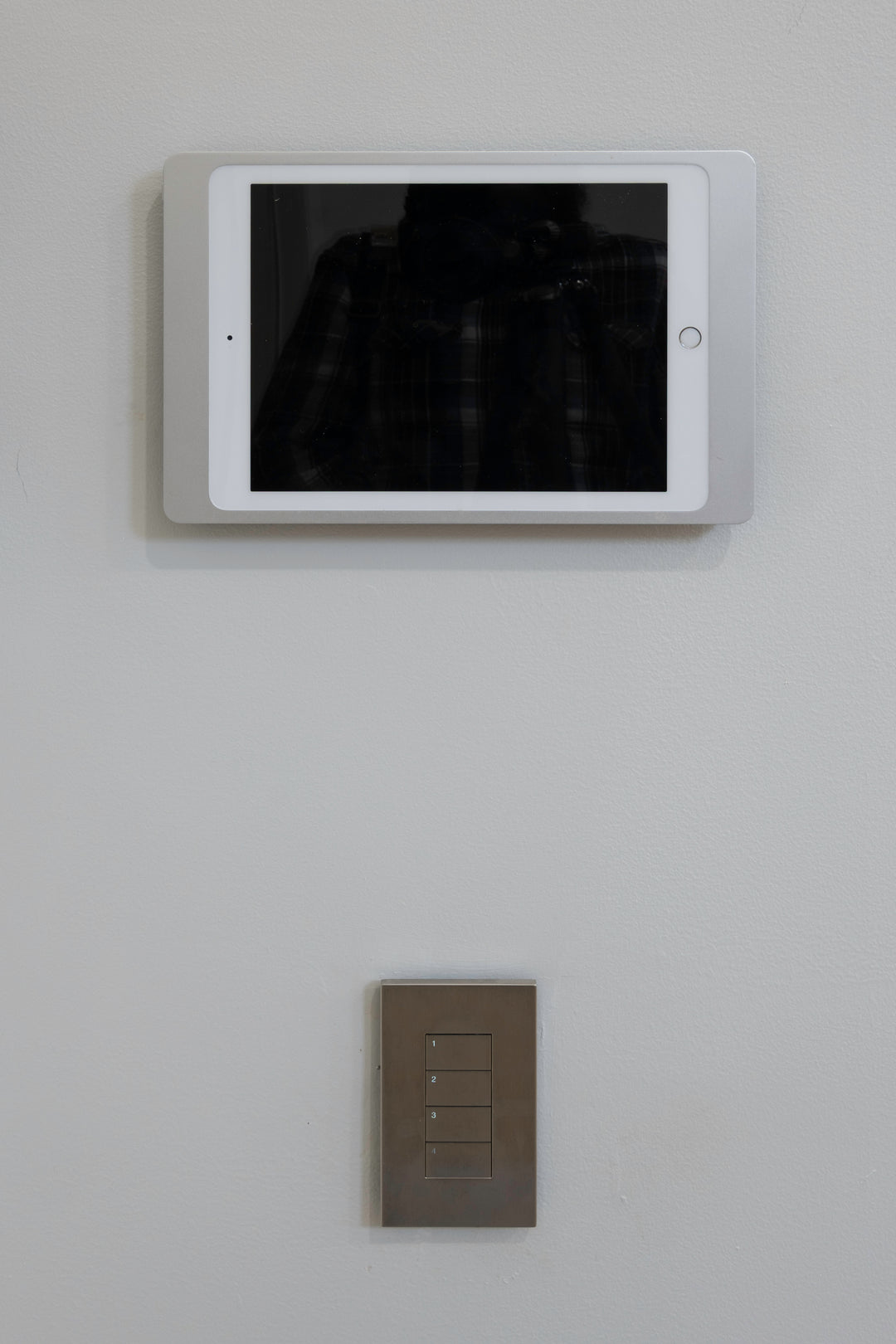

- Wall-mounted iPads with magnetic charging stations
- Handheld universal remotes
System control includes:
✔ Audio and video throughout the space
✔ Lighting, shades, and climate (expandable)
✔ Microphone and event audio integration
✔ Source selection and zone control
This allows the homeowner to control the entire environment with ease—whether for daily use or large events.
Network & Infrastructure
To support the system, Xtend implemented a robust, commercial-grade network infrastructure.
Key components include:
- Ubiquiti enterprise networking equipment
- Full wireless coverage throughout the clubhouse
- Centralized AV racks for all system components
- Remote monitoring and power management via OvrC and WattBox
This ensures:
✔ Reliable performance across all systems
✔ Strong connectivity for streaming and control
✔ Simplified service and long-term maintenance
Clean Installation & Equipment Organization
All system components were thoughtfully organized for performance and serviceability.
- Dedicated AV rack systems located in a storage room

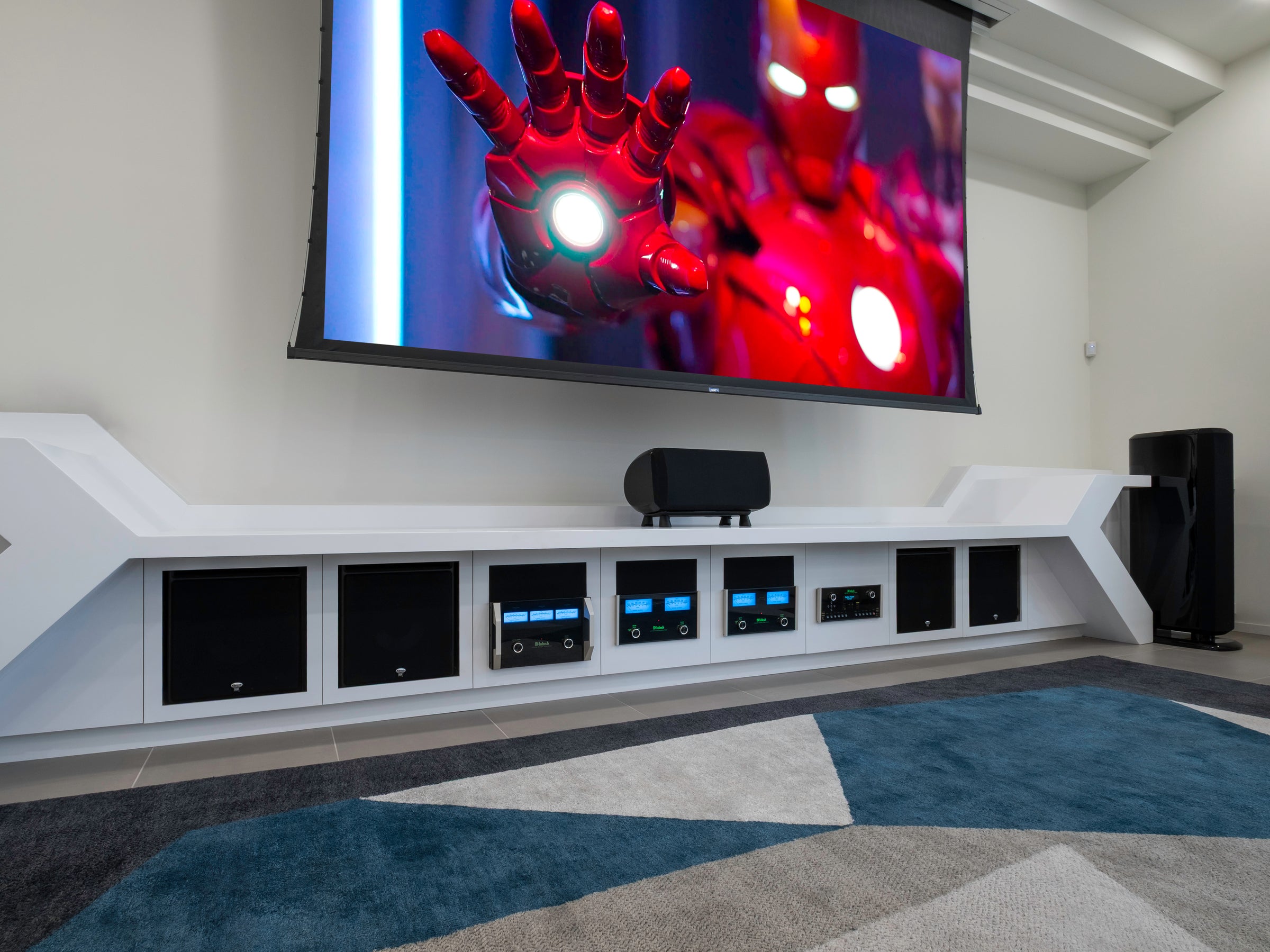

- McIntosh theater equipment integrated into custom cabinetry
- Structured cabling and professional wire management
This approach delivers:
✔ Clean aesthetics throughout the space
✔ Easy access for maintenance and upgrades
✔ Long-term system reliability
The Final Result
The completed Gates Mills clubhouse is a fully integrated luxury entertainment environment that delivers:
- Reference-quality home theater performance
- Concert-level distributed audio
- Flexible, scalable video distribution
- Event-ready microphone and input capabilities
- Simple, intuitive control of the entire system
The space now functions as both a private cinematic retreat and a high-end entertainment venue, designed to impress guests and provide an exceptional experience for years to come.
